32V 200A MEGA Fuse High Current Bolt Down Fuse

Model Number : MEGA-200

Place of Origin : China

MOQ : 100

Price : USD $0.65~$1.5 per piece

Payment Terms : T/T

Supply Ability : 5K pieces per week

Delivery Time : 10 work days

Packaging Details : 100pcs per bag

Item Name : Bolt Down Fuse

Part No. : MEGA

Amps : 200A

Volts : 32V dc

Total Length : 68.8 mm

Hole distance : 50.8 mm

Mounting Type : Bolt down

Interrupting Rating : 2000A

Insulation material : PPA

Contact material : nickel plated copper

RoHS Compliant : Yes

Halogen free : Yes

Operation temp : -40˚C to +125˚C

Contact Now

32V 200A MEGA Fuse High Current Bolt Down Fuse

Product Description

Product Name	Automotive Fuse
Types	Bolt Down
Volts	32V dc
Amps	200A
Blow Speed	Slow Blow
Environmental	Lead and Ph free
Package	100pcs per bag

Suitable for new energy vehicles, forklifts, motor controllers, charging piles, rechargeable motors, ships and

other low-voltage ELECTRICAL AUTOMOTIVE and MARINE appliances.

This MEGA FUSE is ideal for battery and alternator protection application and other heavy

gauge cables requiring high current protection.

Specification	Parameters
Interrupting Capability	2000A @ 32 VDC
Rated Voltage	32 VDC
Ambient Temperature	-40°C to +105°C
Terminals Material	nickel plated copper
Insulation Material	PPA
Standard	IS08820-5 / UL248
Torque	8-14 Nm M6,12-18 Nm M8

Electrical Performance

TESTING CURRENT	BLOW TIME LIMIT
100%	>4 Hr
135%	120s - 1800s
200%	1s - 15s
350%	0.3s - 5s
600%	0.1s - 1s

32V 200A MEGA Fuse High Current Bolt Down Fuse

Drawing

32V 200A MEGA Fuse High Current Bolt Down Fuse

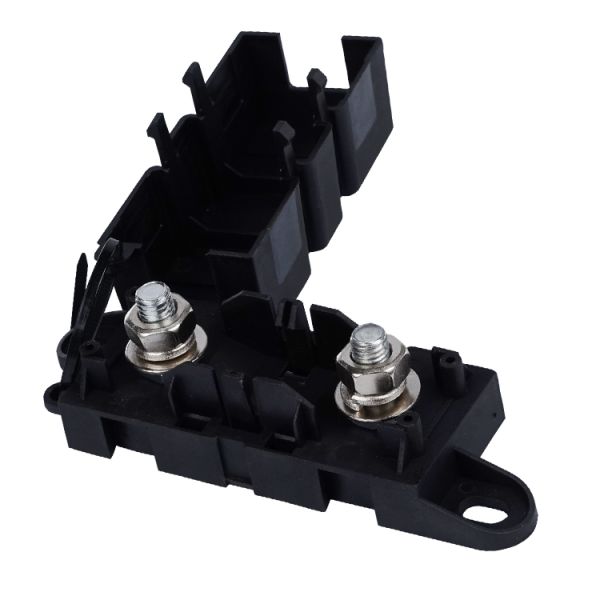

MEGA AMG FUSE HOLDER ANM-H:

32V 200A MEGA Fuse High Current Bolt Down Fuse

Standard Package

100pcs per bag, 5000pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Company warehouse

32V 200A MEGA Fuse High Current Bolt Down Fuse
